In infrastructure projects, the reliability of a drainage system depends entirely on the quality of the pipes used. Reinforced Concrete Pipes (RCP) are expected to last 50 to 100 years. But what separates a high-quality pipe from one that cracks under pressure?
As a leading manufacturer of concrete pipe machinery, Zhongyi Machinery has identified the five most critical factors that determine the structural integrity of your finished product.
1. The Precision of the Steel Reinforcement Cage
The “skeleton” of the pipe is what handles the tensile stress.
- Consistency is Key: Using an automatic cage welding machine ensures that the spacing between steel wires is uniform.
- Positioning: If the cage is not perfectly centered within the mold, one side of the pipe will be significantly weaker. Proper spacers and a stable Suspension Roller Machine are essential to keep the cage in place during rotation.
2. Optimized Concrete Mix Design
The ratio of cement, water, and aggregates (sand and crushed stone) must be precise.
- Water-Cement Ratio: Too much water leads to porosity, while too little makes the concrete hard to compact.
- Aggregate Quality: Using clean, well-graded stone ensures there are no “weak spots” in the concrete matrix.
3. Effective Centrifugal Compaction (RPM Control)
This is where the machinery plays its biggest role. In the suspension roller process, the compaction is achieved through centrifugal force and the pressure of the roller.
- Speed Management: Our 600-1200 model features an adjustable speed range of 60-900 RPM.
- Why it matters: You must start at a lower speed for even feeding and gradually increase to high speeds for maximum compaction. This process squeezes out excess water and air, resulting in a pipe with incredibly high density.
4. Wall Thickness and Geometry

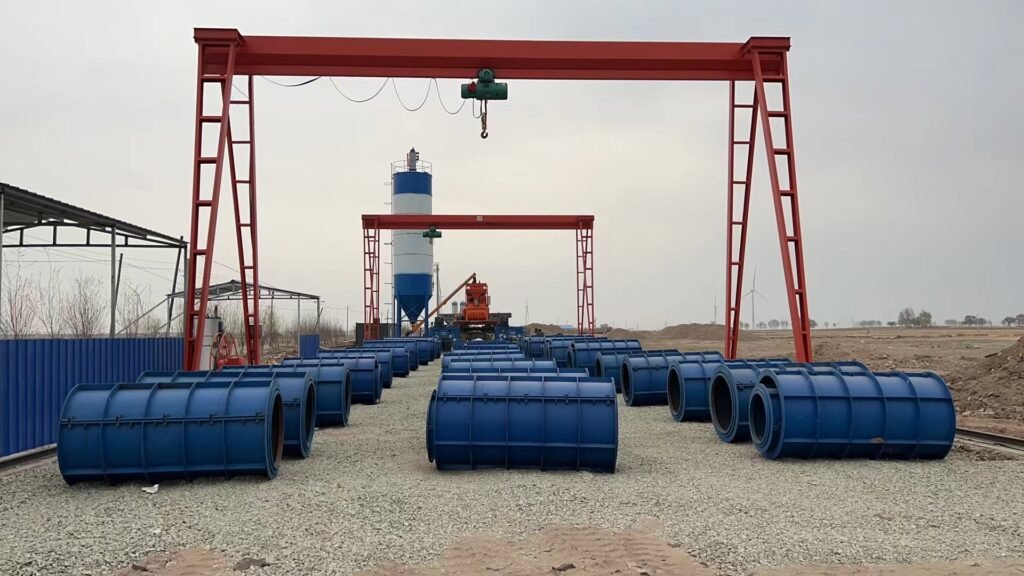

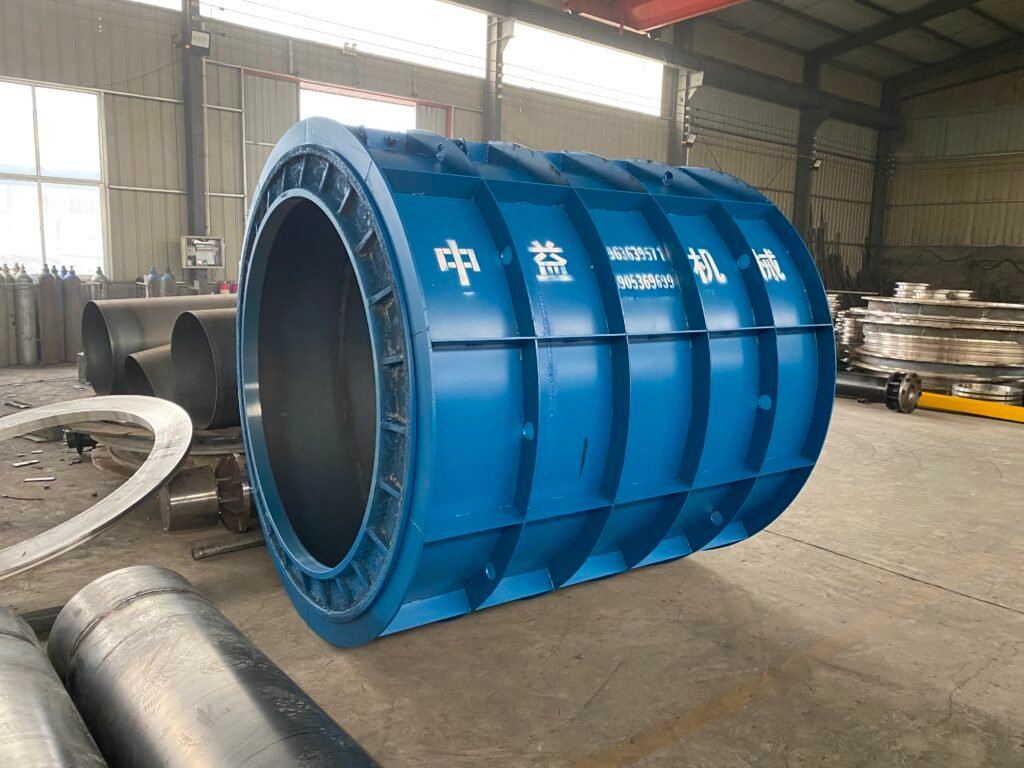

Consistency in wall thickness is a major factor in load-bearing capacity. If a pipe is meant to be 100mm thick, a variation of even 5mm can lead to structural failure under heavy road loads. High-quality [Concrete Pipe Molds] made from High-strength steel plate prevent deformation even after years of repetitive use.
5. Proper Curing Processes
The chemical reaction (hydration) that hardens concrete requires moisture and time.

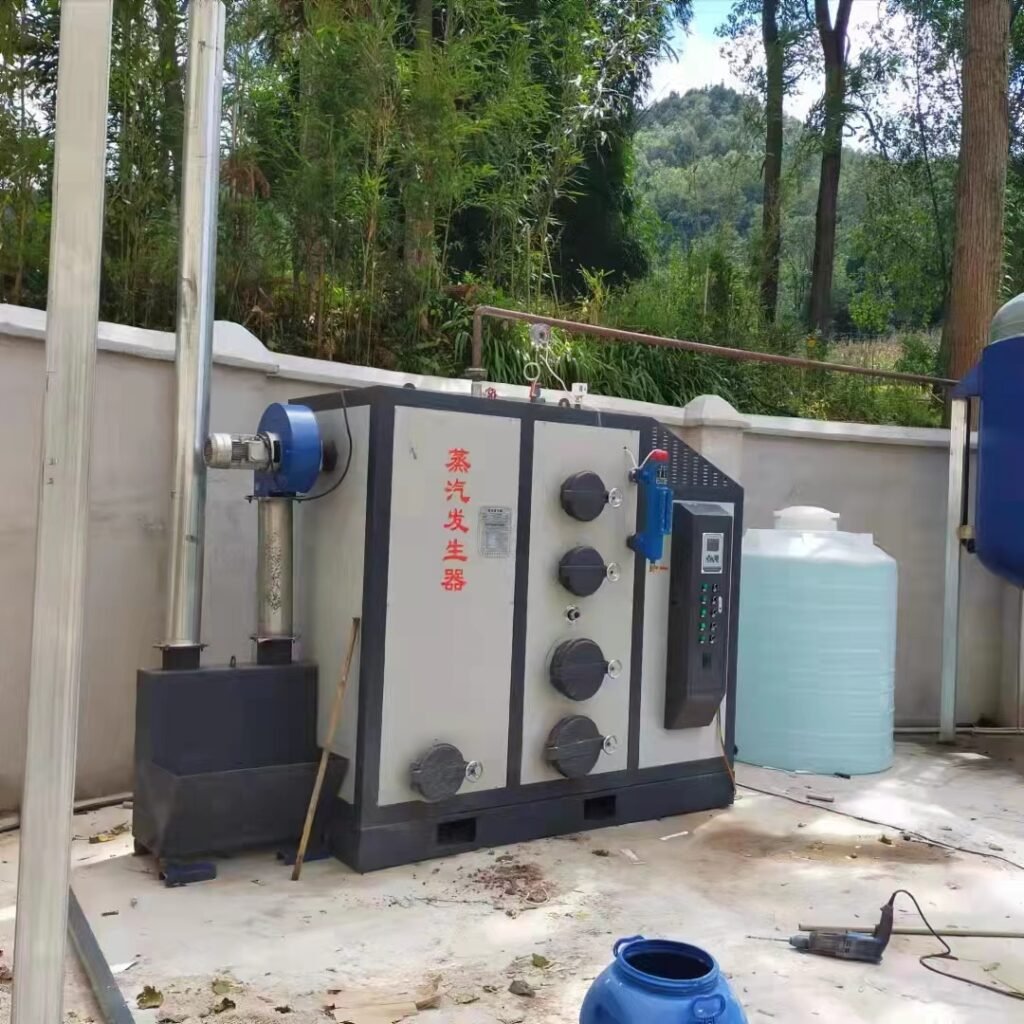

- Steam Curing: This is the most efficient method for commercial factories, allowing pipes to reach 70% of their strength within 24 hours.
- Natural Curing: If steam is not available, pipes must be kept wet in a shaded area for at least 7-14 days to prevent surface cracking.
Conclusion: Quality Equipment Equals Quality Pipes
To produce pipes that meet ASTM or local infrastructure standards, you need more than just raw materials—you need precise control over the manufacturing process. From the cage welding to the final RPM of the suspension roller, every detail counts.
At Zhongyi Machinery, we provide the technology and the expertise to help you build a high-standard RCP factory.
Ready to upgrade your production quality? Consult with our technical engineers today for a customized solution! 📩 Email: Zymechanical@gmail.com 📲 WhatsApp: +86 [18905369699] 🔗 Explore our machines: [Link to Products Page]
