In municipal drainage, irrigation systems, and infrastructure construction, concrete pipes are widely used due to their high strength, long service life, and strong adaptability. Among different pipe types, socket concrete pipes are especially popular because of their reliable connection performance and easy installation.
The quality of socket concrete pipes largely depends on one key factor: the socket concrete pipe mould. As a professional manufacturer of concrete pipe production equipment, Qingzhou Zhongyi Machinery Factory provides customized and durable socket concrete pipe mould solutions for global markets, including Central Asia.
This article introduces the structure, working principle, advantages, applications, and selection considerations of socket concrete pipe moulds, helping buyers better understand this essential production component.
What Is a Socket Concrete Pipe Mould?
A socket concrete pipe mould is a specialized mould designed for producing socket-type concrete pipes, also known as spigot and socket concrete pipes. One end of the pipe is formed with a socket, allowing another pipe to be inserted for tight and stable connection.
These moulds are commonly used together with suspension roller concrete pipe making machines or centrifugal pipe machines. Through precise cooperation of inner and outer moulds, the pipe body and socket structure are formed in one process, ensuring high dimensional accuracy and structural integrity.
Socket concrete pipe moulds are widely used in projects where high sealing performance and installation efficiency are required.

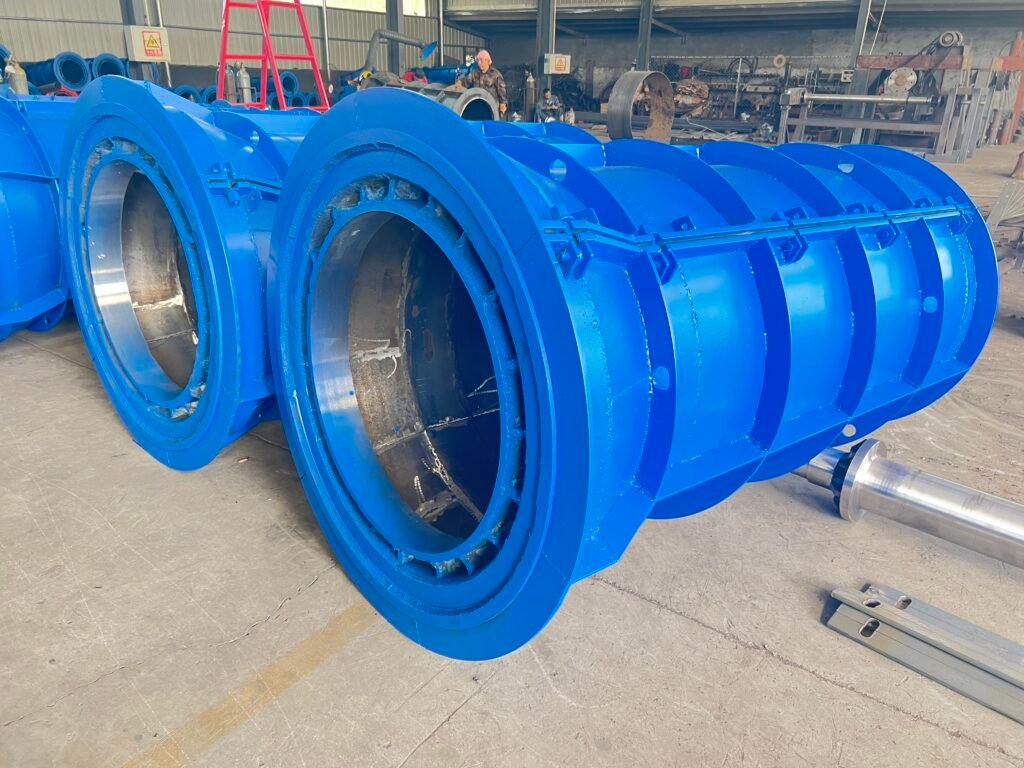

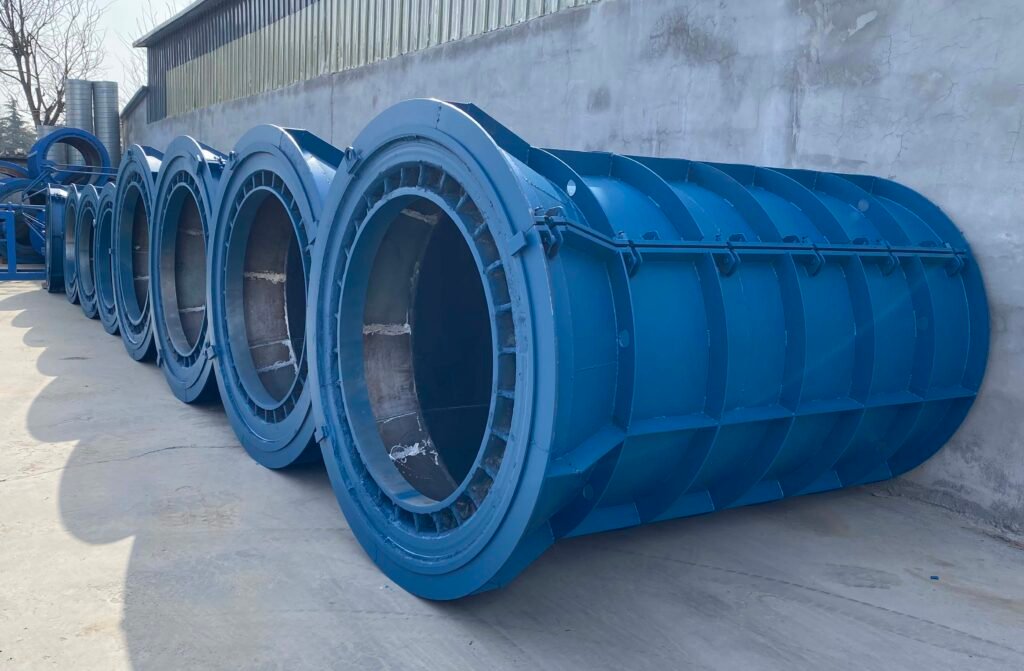

Main Structure of Socket Concrete Pipe Mould
Standard sleeve-type concrete pipe molds consist of multiple critical components. Each part plays a vital role in ensuring pipe quality and mold durability.
Outer Mold System
The outer mold determines the external contour of the concrete pipe. It must possess sufficient strength and rigidity to withstand vibrations, rolling forces, or centrifugal forces generated during production. High-quality outer molds are manufactured from thickened steel plates and feature reinforced structures to prevent deformation.
Cast Steel Component System
Precision cast steel molding is critical for shaping the socket of cement pipes. Grade 45 cast steel achieves tighter dimensional tolerances, significantly enhancing the pipe’s waterproofing performance. The quality of the cast steel directly determines the overall quality of the cement pipe mold.
External Surface Reinforcement Ribs
Reinforcement ribs prevent deformation of the outer mold’s cylindrical body, further strengthening the cement pipe mold for enhanced durability and longevity.
Working Principle of Socket Concrete Pipe Mould
During production, concrete material is uniformly filled into the mold cavity. Depending on the production line configuration, the concrete is compacted through suspended rolling, vibration, or centrifugal force.
As the mold rotates, the concrete becomes densely compacted and uniform, achieving the required strength and surface quality.
After initial setting, the mold is opened, and the finished concrete pipe is removed for curing. This efficient forming process enables continuous production and stable output.
Advantages of Socket Concrete Pipe Mould
Compared with flat joint concrete pipe moulds, socket concrete pipe moulds offer several significant advantages.
Better Connection Performance
Socket concrete pipes provide tighter connections between pipes, reducing leakage risk. This makes them suitable for drainage and sewage systems with high sealing requirements.
Higher Installation Efficiency
The socket connection method simplifies installation. Pipes can be quickly aligned and connected, reducing labor cost and construction time.
High Dimensional Accuracy
Socket concrete pipe moulds are manufactured with high precision. Consistent pipe dimensions ensure smooth installation and compatibility in large-scale projects.
Strong Adaptability
Moulds can be customized for different pipe diameters, lengths, and socket designs. This flexibility allows manufacturers to meet various project requirements.
Applications of Socket Concrete Pipe Mould
Concrete pipes produced with socket moulds are widely used in many engineering fields, including:
- Municipal drainage and sewage systems
- Agricultural irrigation projects
- Industrial wastewater pipelines
- Urban infrastructure construction
- Road and railway drainage systems
In Central Asia, where climate conditions vary and infrastructure projects demand long service life, socket concrete pipes are highly valued for their stability and durability.
Materials and Manufacturing Process of Socket Pipe Moulds
High-quality socket concrete pipe moulds are typically made of high-strength steel. Key components undergo precision machining to ensure dimensional accuracy.
Surface treatments such as polishing or coating help improve wear resistance and extend service life. Proper welding and reinforcement ensure the mould can withstand long-term industrial use without deformation.
At Qingzhou Zhongyi Machinery Factory, mould manufacturing is completed in-house, from raw material processing to final assembly and inspection, ensuring stable quality and reliable performance.
How to Choose the Right Socket Concrete Pipe Mould
Selecting a suitable socket concrete pipe mould is crucial for efficient production and long-term operation.
Compatibility with Pipe Making Machine
The mould must match the suspension roller concrete pipe machine or other forming equipment to ensure smooth installation and operation.
Customization Capability
Different projects require different pipe sizes and socket designs. Choosing a manufacturer that offers customization helps meet specific project needs.
Manufacturing Quality
High-quality materials, precision machining, and strong structure are essential for mould durability and consistent pipe quality.
Technical Support and Service
Reliable technical support and after-sales service help reduce downtime and ensure stable production.
Why Choose Zhongyi Socket Concrete Pipe Moulds?
Qingzhou Zhongyi Machinery Factory is a professional manufacturer of concrete pipe making machines and moulds in China. With years of manufacturing experience, we provide durable and customized socket concrete pipe mould solutions for global customers.
Our advantages include:
- Factory direct manufacturing
- Strong steel structure and long service life
- Custom pipe diameter and socket design
- Suitable for Central Asia and other international markets
- Technical support and guidance
Conclusion
The socket concrete pipe mould is a key component in concrete pipe production. Its design and manufacturing quality directly affect pipe performance, installation efficiency, and project reliability.
Choosing a well-designed and durable socket concrete pipe mould helps improve production efficiency, reduce maintenance costs, and ensure long-term project success. As a reliable manufacturer, Qingzhou Zhongyi Machinery Factory continues to provide stable and customized mould solutions for infrastructure projects worldwide.
